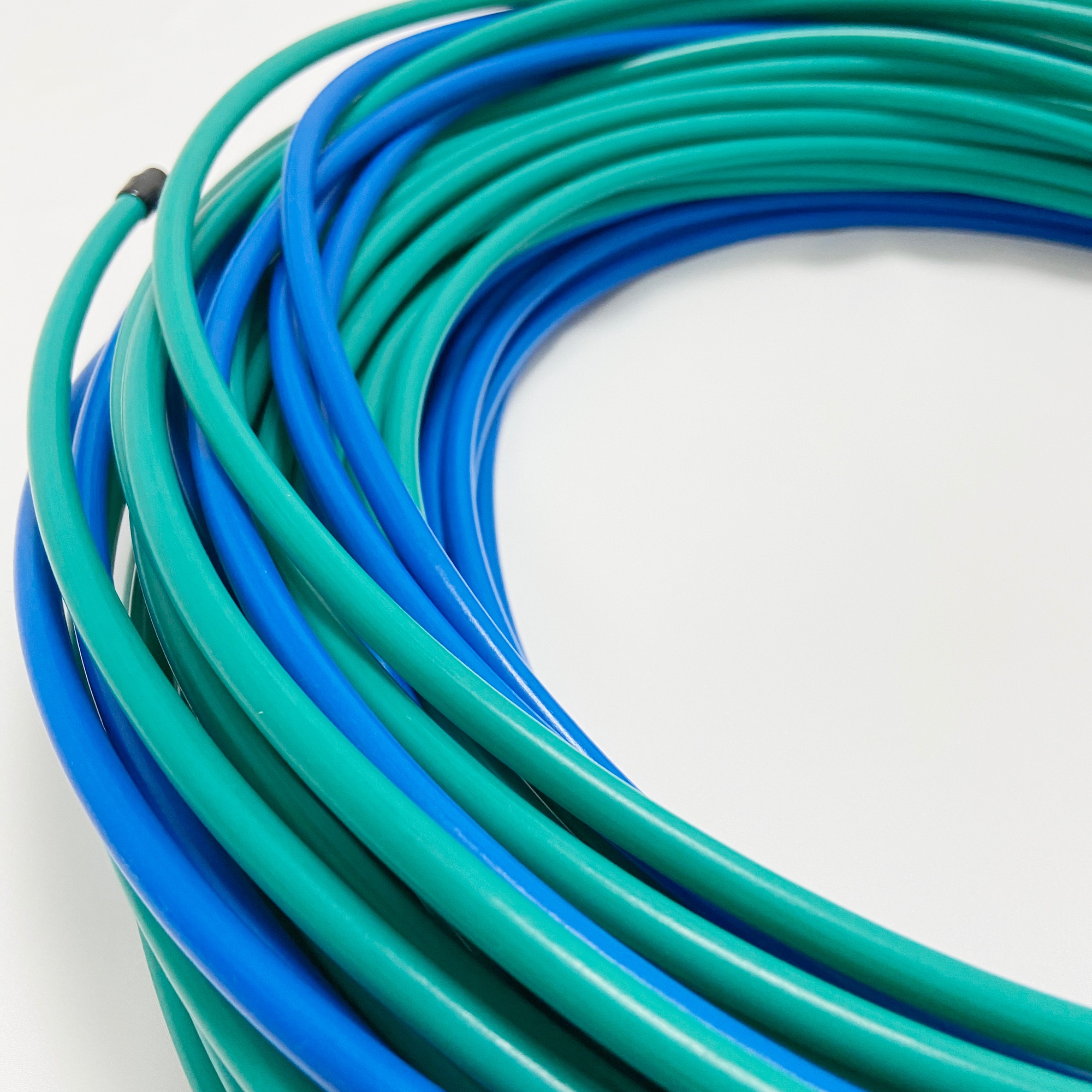

PTFE Color Tube
Vangton Industry has factories in different fields. We are profitional PTFE tube manufacture in China. Our extrusion machines are imported from Taiwan, which have high precision, low defective rate .
All products offered below are 100% virgin premium grade PTFE tubes and there is no sub-brand material, return material.
PTFE/PFA/FEP Tubing - Flexible, white/Semi-Clear/clear PTFE/PFA/FEP pipe (PTFE polytetrafluoroethylene) provides the ultimate in lubricity, high temperature use, chemical resistance, biocompatibility, and precision extruded tolerances.
EXTRUDED PTFE TUBING 0.2MM - 600MM ID
PRODUCT INFORMATION
| Extruded Machines | Imported from Taiwan | Material | PTFE,FEP,PFA |
| Resins Brands | Daikin, AGC, CHC, Dongyue, etc | Raw material rigin | Chinese and imported |
| Inside Diameter | 0.2 ~ 600mm | Wall Thickness(mm) | 0.15~7 mm |
| Forming method | Extruding | Length | 50 m/roll, 100 m/roll,500 m/roll,other customised length |
| Shape | Round,corrugated,square (customised) | Tube Colors | White, translucent, clear, semi-clear, customized colors |
| Shipping package | Cartons, pallets | Shipping method | By sea,by air, by UPS/TNT/FedEx |
| MOQ | Small quantity is avaliable. | Prices | As prices are affected by raw material fluctuations, please contact our sales. |
OUR ADVANTAGES
APPLICATION OF PTFE/FEP/PFA PIPES
| Industry | Application | Media |
| AIR CONDITIONING | Dehydration lines for steam purging prior to filling with refrigerant | Hot gas |
| BAKERIES | Heating supply lines to batter mixing kettles | Steam |
| BOTTLE MAKING | Powerlines, hot bottle stacking machine | Air |
| BREATHING APPARATUS | Cylinder to pressure gauge or demand valve | Compressed air or oxygen |
| CANNING | Beer can sealant lines Charging line for pressurising aerosols | Hot adhesive Nitrous oxide |
| CAR, BUS, AND TRUCK | Coolant lines to can support racks,automatic soldering machine Brake clutch, fuel and sump hoses for high performance cars (rally and racing models) Radiator hoses Turbocharger installation Alternative fuel vehicles | Water Hydraulic brake fluid Clutch and brake fluid, fuel and oil Cooling water Oil drain CNG/LPG |
| CARTON MAKING | Supply lines on milk carton manufacturing machines | Hot waxes and adhesives (non-toxic) |
| CHEMICAL | Chemical transfer hoses | Various acids alkalis, solvents,hydrocarbons etc. |
| COSMETICS | Transfer hose | Powders and oils |
| DISTILLING | Barrel filling | Whiskey |
| ELECTRONICS | Coolant lines for electronic racks and equipment | Water |
| FOOD | Deep frying oil and fat recirculating racks and systems Transfer lines for corn syrup processing Heat supply lines, individual jam packaging machines | Hot edible animal and vegetable oils and fats Glutamates Steam |
| INDUSTRIAL GASES | Cylinder charging PTFE hoses/tubes often "cleaned" for H.P. oxygen | Oxygen / nitrogen / argon / acetylene / helium etc. |
| LAUNDRY / DRY CLEANING | Steam line on laundry presses and irons | Steam |
| LIGHT BUOYS / LIGHTHOUSES | Flexible feed lines cylinders / light burner | Acetylene |
| MARINE | Hydraulic control and power systems (steering gear etc) Condensate lines | Fire resistant and water emulsion hydraulic fluids Steam |
| MOTORCYCLES | Hydraulic clutch, brake and oil | Clutch and brake fluid, oil transfer |
| OIL | Transfer Hose | Crude Oil, Salt Water |
| PACKAGING INDUSTRY | Adhesive lines for sealing | Industrial Solvents |
| PAINTBALL | Gas Lines for Guns | CO2 Gas |
| PAINT SPRAYING | Supply lines, airless spraying systems | Paint, lacquers, organic solvents |
| POWER STATIONS | Feed lines to burners | Fuel Oil |
| PRESS AND INJECTION MOULDING MACHINES | Heating and cooling lines to platen presses and injection moulding heads | Alternating steam and cold water |
| PROCESS PLANT | Transfer hose cooling and/or heating hose, ventilation pipe | Slurry, distillates, plating solutions, water, oil, air, partial vacuum |
| REFRIGERATION | Plate freezers, chiller cabinets, capillary lines | Brine, refrigerant fluids |
| SHOE MAKING | Supply lines on sole cementing machine | Hot adhesives and cement |
| TELEVISION / RADIO | Non-conductive cooling hoses on transmitters | Water, steam, air |
| TEST RIGS | Highly flexible large bore transfer hose | Water, air, hydraulic oil, vacuum |
| TEXTILES (PROCESS PLANT) | Heating lines on dryers, (similar to paper making industry) | Steam |
| TYRE AND TUBE MANUFACTURING | Heating lines on tyre press machines | Steam |
| TYRE REMOULDING | Heating lines on retreading machines | Steam |
| URETHANE FOAM MANUFACTURING | Supply lines on foam making machines | Hot resins and activators, at high pressures |
| MANUFACTURING | 3D printing | FDM 3D printing material nylon 12 carbon fiber, ABS-CF10 carbon fiber, PLA polylactic acid, ABSplus plastic, PolyJet 3D printing material VeroUltra, WSS150, SAF 3D printing material PA11, ect |
RAW MATERIAL, WORKSHOP, WAREHOUSE
CERTIFICATE AND EXPORT
THE CLIENTS WITH US
Proof & Pneumatic Testing Per Roll
Many factories in China mornitor PTFE tubing only by vernier caliper and naked eyes, in order to save cost. But that is hard to find crazing on tube or leakage, not to mention tension strength of tubes.
Suniu factory use professional machines to do complete inspection(NOT sampling inspection) of each roll tube(100m/roll): Proof pressure test(double working pressure) and Pneumatic test(leakaging testing).
Whey need 100% proof pressure and pneumatic testing for tubing ? | ||||||||||||
*High pressure tubes | *No crazing or crackings | *Filtering leakage tubes | *No sub-standard resin | |||||||||
After testing, we will sift tubing don't withstand intended operating pressure. There are many different reasons to cause such phenomenon. Such as improper sintering, solvent not dried totally, substance in green compact, etc | Crazing is small cracks close to the surface of PTFE tube. It is difficult to find it if not test. However crazing will become cracks after being used for some time. | Some tubing will leaks because of improper production process or other problem. It will be harmful as fluoroplastic usually used in punishing conditions | Many factories in China use substandard PTFE resins to reduce cost. But such tube will be with very low pressure rating. It is difficult to find it if judge by naked eyes. However, pneumatic testing will help us find problem easily. | |||||||||
PTFE TUBE PRESSURE RATIO (FOR REFERENCE) | PTFE TUBING TOLERANCE | ||||
Size(ID X OD) | <p style="box-sizing: border-box; margin-top: 1em; margin-bott
